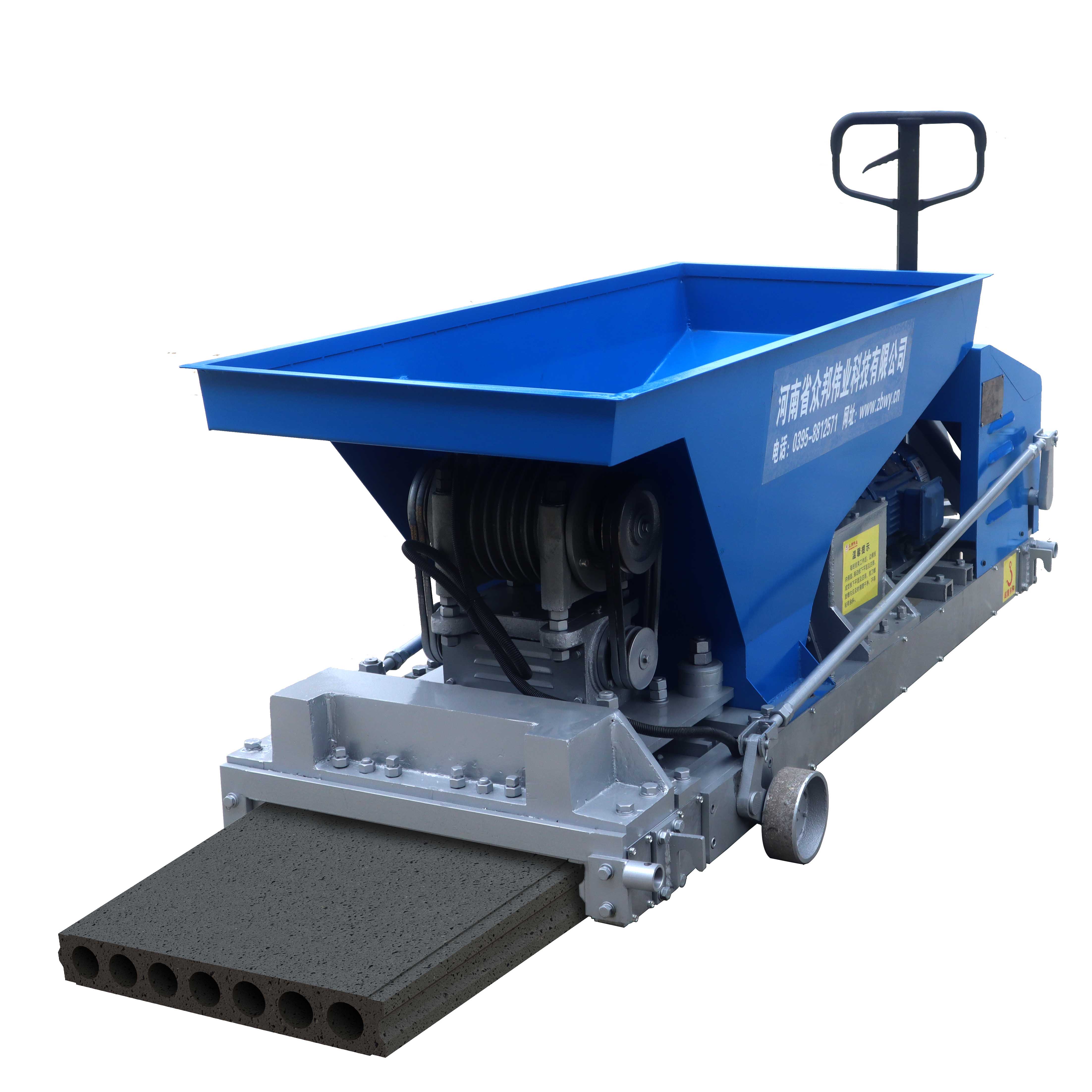

JQT series lightweight wall board extrusion adopts the technology original of random tension rebar and pretensioning upper protective layer.it uses ordinary cement or port-land cement as gelling agentthe low carbon steel wire as reinforce.expand perliteceramsiteslagfly ashgrain slagsand as aggregate.The traditional manual drawing ground moulding or stripping form plate process is integrated into a whole process that can be finished by the machine at one time. The advanced technology has greatly reduced the product cost improved the product quality and production efficiency and is the core equipment for the production of lightweight partition board.
Auxiliary Equipment: lightweight aggregate concrete mixer cuttercrushermaterial dumper panelcarrier vehicleLacing standpanel handling machine

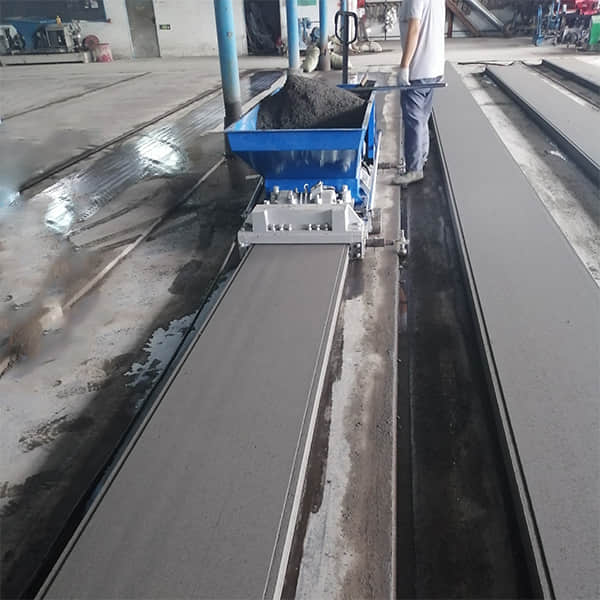

The machine gathers distributing material vibrating forming and demolding processes of the lightweight partition wall panel into one. The main motor transfers power to the reducer through the belt pulley.The output shaft of the reduction gearbox drives the helical churning knife to rotate in the forming cavity which consists of machine frame (wall board) vibration machine (vibrator) and pedestal.the lightweight mixtures is transported continuously from hoppers to forming cavities.It is subjected to the dual action of the helical churning knife (augers)extrusion and the vibrator continuous vibration in the forming cavity.with producing resonance the wall panel can achieve the requirements of shape size and density through be squeezed and compacted continuously.At the same time compacted wall panel produces the reaction force to the rotating churning knife and pushes the extruder forward continuously thus realizing the continuous production of wall panel. The upper surface of wall panel is polished by the forming scraper at the end of the machine.
| Model | Specification | Production speed （m/min） | Power | Lifetime of Mixing blade | Dimension （L*W*Hmm） | Weight （kg） | ||||
| panel thickness | panel width | Hole | Dia of Hole | Main Motor | Vibrator | |||||
| JQT6×60 | 60 | 600 | 9 | 38 | ＞0.8~3.2 | 4 | 0.8 | ＞80 | 2500*860*750 | 644 |
| JQT8×60 | 80 | 600 | 8 | 48 | ＞0.8~3.2 | 4 | 0.8 | ＞80 | 2600*880*750 | 934 |
| JQT9×60 | 90 | 600 | 7 | 58 | ＞0.8~3.2 | 4 | 0.8 | ＞80 | 2600*900*750 | 942 |
| JQT10×60 | 100 | 600 | 6 | 68 | ＞0.8~3.2 | 4 | 0.8 | ＞80 | 2600*900*750 | 956 |
| JQT11×60 | 110 | 600 | 5 | 78 | ＞0.8~3.2 | 5.5 | 1.1 | ＞80 | 2600*900*820 | 956 |
| JQT12×60 | 120 | 600 | 5 | 88 | ＞0.8~3.2 | 5.5 | 1.1 | ＞80 | 2600*900*820 | 1044 |
| JQT14×60 | 140 | 600 | 5 | 90 | ＞0.8~3.2 | 5.5 | 1.1 | ＞80 | 2500*900*880 | 1044 |
| JQT15×60 | 150 | 600 | 4 | 110 | ＞0.8~3.2 | 5.5 | 1.1 | ＞80 | 2500*900*880 | 1192 |
| JQT16×60 | 160 | 600 | 4 | 110 | ＞0.8~3.2 | 5.5 | 1.1 | ＞80 | 2500*950*900 | 1192 |
| JQT18×60 | 180 | 600 | 3 | 135 | ＞0.8~3.2 | 7.5 | 1.1 | ＞80 | 2500*950*900 | 1350 |
| JQT20×60 | 200 | 600 | 3 | 40 | ＞0.8~3.2 | 11 | 4 | ＞80 | 2700*975*800 | 1200 |
| JQT20×60 | 200 | 600 | 12 | 37.4 | ＞0.8~3.2 | 15 | 4 | ＞80 | 2620*975*800 | 1250 |
1、High efficiency: it can produce panel 0.8-3.2m/min.
2、The density of the plate is uniform and it changes completely the low strength of the plate at the edge of the left rotation and the right hand mixing blade which is easy to be cracked after assembling.
3、it can save a lot of raw materials: the broken end wire can be manually connected; The plate can be produced to reach the end of the bar so that the steel bar and mixing materials can be used at the end of the pedestal thus improving the utilization ratio of the pedestal.
4、it doesn’t use the channel steel track which saves the cost of the pedestal and reduces the production difficulty ensure the accuracy of production.
5、The main vulnerable parts have long lifetime:mixing blade can be used more than 80000 metersThe vibration plate can reach more than 100000 meters and the side wall panel can reach more than 60000 meters.
