The main models are 90 、 100 、 120 、 150、200 mm,they are divided into single L single T double L double T and T+L etc.
Consult now
Scan the QR code on the left
Follow and add friends for consultation
The main models are 90 、 100 、 120 、 150、200 they are divided into single L single T double L double T and T+L etc.

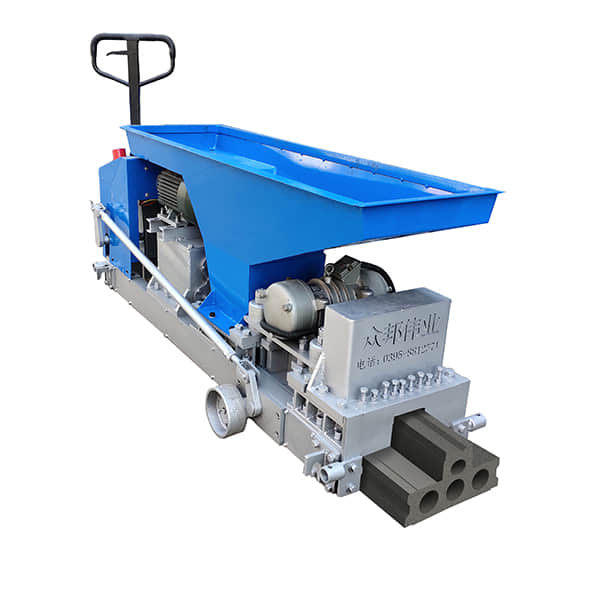

JQT special shape lightweight partition wall panel extrusion machine solves the installation difficulty of “internal and external corners’’ of the wall‘s corner in the construction process. It achieves the panel installation standards of fast installation time-saving flat.The connection between plates is more stable. The integrity and stability of the wall are enhanced. Its heat preservation sound insulation and other indicators are better than national and industry standards.
JQT special shape lightweight partition wall panel extrusion machine realizes the firm connection and seamless connection of corner wall and main wall. It can be a community between the wallboard and joint panels and building beams to solve the problem of wall cracks in the building's corner.
The machine gathers distributing material vibrating forming and demolding processes of the lightweight partition wall panel into one. The main motor transfers power to the reducer through the belt pulley.The output shaft of the reduction gearbox drives the helical churning knife to rotate in the forming cavity which consists of machine frame (wall board) vibration machine (vibrator) and pedestal.the lightweight mixtures is transported continuously from hoppers to forming cavities.It is subjected to the dual action of the helical churning knife (augers)extrusion and the vibrator continuous vibration in the forming cavity.with producing resonance the wall panel can achieve the requirements of shape size and density through be squeezed and compacted continuously.At the same time compacted wall panel produces the reaction force to the rotating churning knife and pushes the extruder forward continuously thus realizing the continuous production of wall panel. The upper surface of wall panel is polished by the forming scraper at the end of the machine.
| No | model | panel specification | number of hole (pcs) | dia of hole(mm) | hollow ratio(%) | power | dimension | |||
| height(mm) | width(mm) | productivity(m/min) | main motor(kW) | vibrator(kW) | L×W×H(mm) | |||||
| 1 | JQT9*29.5Single T | 90 | 295 | 4 | 1-φ46 3-φ58 | 20 | 0.8-2.5 | 4 | 0.8 | 2300×600×725 |
| 2 | JQT9*29Single T | 90 | 290 | 4 | 1-φ46 3-φ52 | 20 | 0.8-2.5 | 4 | 0.8 | 2200×700×860 |
| 3 | JQT9.5*29.5Single T | 95 | 295 | 4 | 1-φ48 3-φ58 | 20 | 0.8-2.5 | 4 | 0.8 | 2200×710×860 |
| 4 | JQT10*29.5Single T | 100 | 295 | 4 | 1-φ46 3-φ58 | 20 | 0.8-2.5 | 4 | 0.8 | 2300×600×725 |
1、High mechanization full hydraulic liftingit can save a lot of raw materials: the broken end wire can be manually connected; The plate can be produced to reach the end of the bar so that the steel bar and mixing materials can be used at the end of the pedestal thus improving the utilization ratio of the pedestal.
2、 it doesn’t use the channel steel track which saves the cost of the pedestal and reduces the production difficulty ensure the accuracy of production.
3、 The main vulnerable parts have long lifetime:mixing blade can be used more than 80000 metersThe vibration plate can reach more than 100000 meters and the side wall panel can reach more than 60000 meters.
