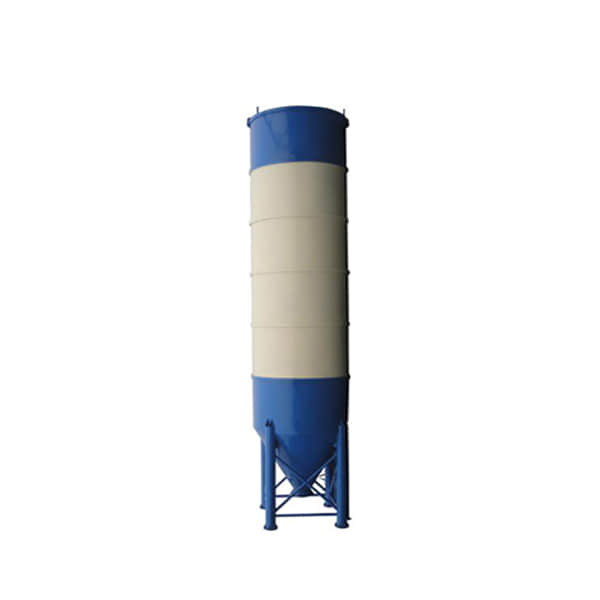

Cement silo generally used in concrete mixing station, the cement tank is a closed tank storage of bulk materials, suitable for storage of food, a variety of bulk materials such as cement, fly ash.
Consult now
Scan the QR code on the left
Follow and add friends for consultation
Cement silo generally used in concrete mixing station, the cement tank is a closed tank storage of bulk materials, suitable for storage of food, a variety of bulk materials such as cement, fly ash.
The cement tank is equipped with a material level system, which can show the location and quantity of the material. The hole device can relieve the caking caused by the material deposition for too longThe performance characteristics:
1. Dust removal system: An electric dust removal device is installed on the top of the cement bin, which can absorb suspended particles inside the bin and reduce pollution to the surrounding environment.
2. Arch breaking device: The lower cone of the cement bin is equipped with an air blowing arch breaking device, which USES a small electromagnetic directional valve located in the air control box to control the release of compressed air to break the arch of cement and various kinds of powder, so as to avoid the accumulation of powder and cause blockage.
model | capacity(T) | diameter （m） | tank height（m） | total height of tank（m） | mixer model | screw conveyor model |
30 | 30 | 2.5 | 4.8 | 11.4 | JD350 | LSY 163 |
50 | 50 | 3 | 5.4 | 12 | JS500 | LSY 180 |
80 | 80 | 3 | 9 | 15.6 | JS750 | LSY 180 |
100 | 100 | 3 | 11.4 | 18 | JS1000 | LSY 230 |
150 | 150 | 3 | 23.5 | 29 | JS1000 | LSY 230 |
200 | 200 | 4.5 | 18.6 | 25.2 | JS1500 | LSY 230 |
300 | 300 | 4.5 | 24.6 | 29.5 | JS2000 | LSY 230 |
500 | 500 | 6 | 22.2 | 28.8 | JS3000 | LSY 230 |
1. High cost performance, strong practicability, reasonable matching of storage specifications and material matching requirements, reduce storage waste, convenient disassembly and installation, long service life.
2. The cement silo has excellent quality, precise structure and strong anti-corrosion performance.It is connected by high strength special bolts and has a beautiful appearance.
3. Reliable sealing structure, with special sealing strip, can withstand 200° high temperature test.After the sealing strip is compacted, the material will be driven into the cement bin cleverly, and the dust will automatically drill into the small gap to achieve a good sealing effect.
4.The transportation is very convenient.It can be transported regardless of size.
