广泛应用于切割轻质隔墙板、楼板。檩条（水泥柱）楼梯踏步薄板等一系列水泥制品，本机无需人工切割，避免了切割时粉尘对人身的伤害。
Consult now
Scan the QR code on the left
Follow and add friends for consultation

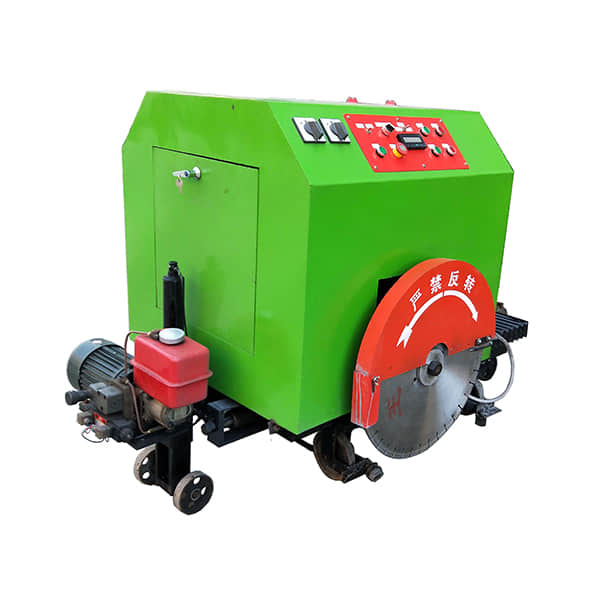

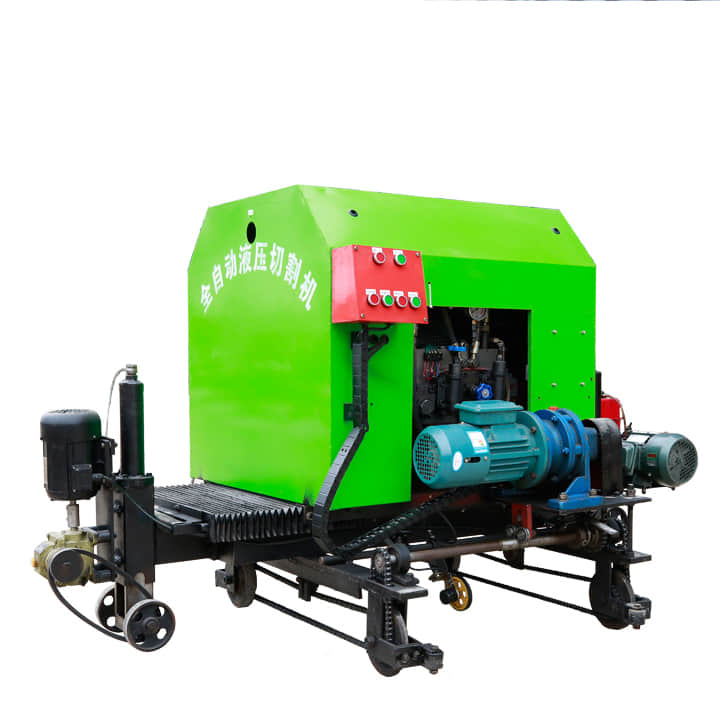

Automatic hydraulic cutting machine is a new cutting equipment designed and developed by our company.It is widely used in cutting light wall panels and floor slabs.the machine does not need manual cutting, to avoid the personal injury caused by dust when cutting.Automatic hydraulic cutting machine USES hydraulic pump to convert mechanical energy of motor into hydraulic energy.Its structure is composed of mechanical part and hydraulic part.
The mechanical part is composed of motor, electrical components frame supporting plate and cover, and the hydraulic part is mainly composed of oil pump, hydraulic valve, hydraulic cylinder and various hydraulic auxiliary parts (oil tank).
name | model | quantity | remarks |
length counter | SF9648J | 1 | |
ful tank cover | EYE-25 | 1 | |
filter element | WU40 | 1 | |
gear pump | CBN-E304 | 1 | |
overflow valve | YE-B10H4 | 2 | |
straight one-way valve | DF-B10K | 1 | |
throttle | LF-B10H-C | 1 | |
water pump | PLD-2201 | 1 | 24V DC power supplu with power supply |
electromagnetic change-over valve | 34B0-H10B-T | 2 |
1、切口厚度：≤220mm
2、切口宽度：5mm
3、刀盘直径：φ400mm（φ500mm）
4、刀盘转速：2000γ/min
5、刀口精度：≤10mm
6、配套功率：11kw
7、油泵额定压力：16Mpa
8、切割宽度：YZQ650型≤650、YZQ1200型≤1200
9、横向切割速度：0-2.5m/min
10、整机质量：600kg
11、外形尺寸（长x宽x高）：1500x1050x1150（mm）
Transverse and up and down automatic feed and automatic return, high cutting precision, large power transfer, low voltage control circuit, reliable performance, simple structure and easy maintenance, etc., It is an ideal cutting machine for concrete products.
