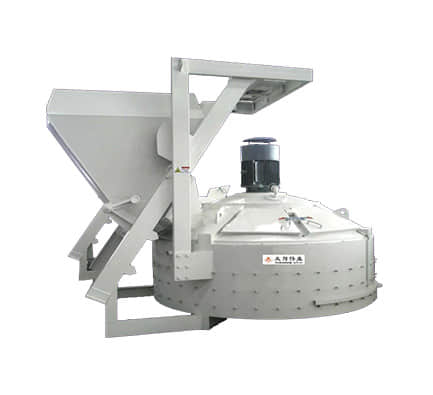

CMP Series Planetary concrete Mixers has the advantages of smooth transmission, high mixing efficiency, high homogeneity (no dead Angle stirring), unique sealing environment without leakage of slurry and material, strong durability, easy internal cleaning and large maintenance space.The vertical shaft mixer is not only suitable for the mixing of ordinary commercial concrete and precast concrete, but also can be used for the mixing of glass, ceramics, refractories and other products.And it has solved all kinds of high performance concrete mixing problems at present.
Main advantages of vertical planetary mixer：
1.Specially designed stirring device makes the stirring speed more faster and more even.
2.Mixing blade is more wear-resistant;Elastic coupling and hydraulic coupler (optional item) can effectively protect the transmission system from impacting of overload;
3.Specially developed gearbox can effectively distribute the power balance to various mixing devices to ensure the low noise operation of the mixer, even under harsh production conditions.
4.Large size access door for easy access and cleaning
5.High pressure cleaning device and moisture content tester are available.
Stirrer device：
For mixing different materials, the lining plate can be cast iron, wear resistant plate and high wear resistant surfacing materials.High nickel alloy impeller blades are more wear resistant and polyurethane blades are optional.
Protective device:
The unloading door is equipped with limit switch, which can set the size of the door according to the need.Three discharge doors can be opened.From model selection to customization for special applications, as well as maintenance and service work, we are able to provide all-round technical support and support.
| Item | Model | ||||||||||||||
| CMP50 | CMP100 | CMP150 | CMP250 | CMP330 | CMP500 | CMP750 | CMP1000 | CMP1250 | CMP1500 | CMP2000 | CMP2500 | CMP3000 | CMP4000 | CMP4500 | |
| out capacity（L） | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| input capacity（L） | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 |
| out mass（kg） | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 |
| mixing power（kw） | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 160 | 200 |
| discharging power(（kw） | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| planetary | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/3 | 2/4 | 2/4 | 2/4 | 3/6 | 3/6 | 3/9 | 3/9 | 3/9 |
| side scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| discharging paddle | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 |
| weight（kg） | 700 | 1300 | 1450 | 1600 | 1700 | 2400 | 3900 | 6230 | 7000 | 8000 | 9535 | 10500 | 11000 | 16000 | 18000 |
| dimension（L×W×H mm） | 950* 786* 1200 | 1664* 1453* 1447 | 1664* 1453* 1617 | 1856* 1648* 1772 | 1862* 1850* 1870 | 2220* 2071* 1895 | 2581* 2336* 2195 | 2891* 2602* 2217 | 3058* 2756* 2305 | 3223* 2902* 2425 | 3625* 3230* 2630 | 3893* 3550* 2695 | 3893* 3550* 2975 | 4594* 4150* 3249 | 4594* 4150* 3399 |
Main features of vertical shaft planetary mixer:
1.the main characteristics of vertical planetary mixer is reducer drive within the mixing barrel stirring arm and mixing blade rotation and orbit, all-round to stir within the mixing drum of concrete material, vertical planetary mixer transmission device adopts the company specially designed transmission of machine of decelerate of hard tooth flank, the revolution of the mixing blade, rotation is after in-depth research and test and determine, in blender mixing does not produce all kinds of particle size and specific gravity of aggregate segregation under the condition of get the most production efficiency, material within the mixing drum trajectory smooth, continuous, to produce high quality cement concrete materials.
2.The unloading device of the vertical shaft planetary mixer can be opened and closed by pneumatic and hydraulic means according to the needs of different customers. The number of unloading doors can be opened up to three, and a special sealing device is designed on the unloading door to ensure its strong sealing and reliable control.The specially designed hydraulic pump station can meet the requirements of the mixer to be equipped with multiple unloading doors, and has manual unloading function. In case of emergency, the unloading door can be opened manually after class.
3.On the cleaning device, an automatic high-pressure cleaning system can be set. The wall of the mixing drum, the mixing tool and the cover of the mixing drum can be thoroughly cleaned within a few minutes by using the rotating high-pressure nozzle.Greatly improve the cleaning effect, reduce the cleaning time, reduce labor intensity and improve the working environment.
4.Main types of materials for blade and liner of vertical shaft planetary mixer:
(1) wear resistant alloy inserts
(2) surfacing welding materials
(3) high chromium alloy
(4) stainless steel
(5) ceramic materials
(6) polyurethane material
High wear resistant rubber and cast stone material
