Slag screening machine is the use of screening equipment to separate the thick and fine materials from a placer machinery.It consists of a hull, a frame, a reducer, a conveyor belt, a rotating screen, an engine or motor.This machine has simple structure, economical application and easy operation.
The slag screening machine is widely used in the screening of all kinds of solid materials with particle size less than 300mm. It has a series of advantages, such as high screening efficiency, small dust amount, low noise (less than 70dB), small maintenance amount, long service life and convenient maintenance, etc. The workload can reach 60T to 1000T per hour.

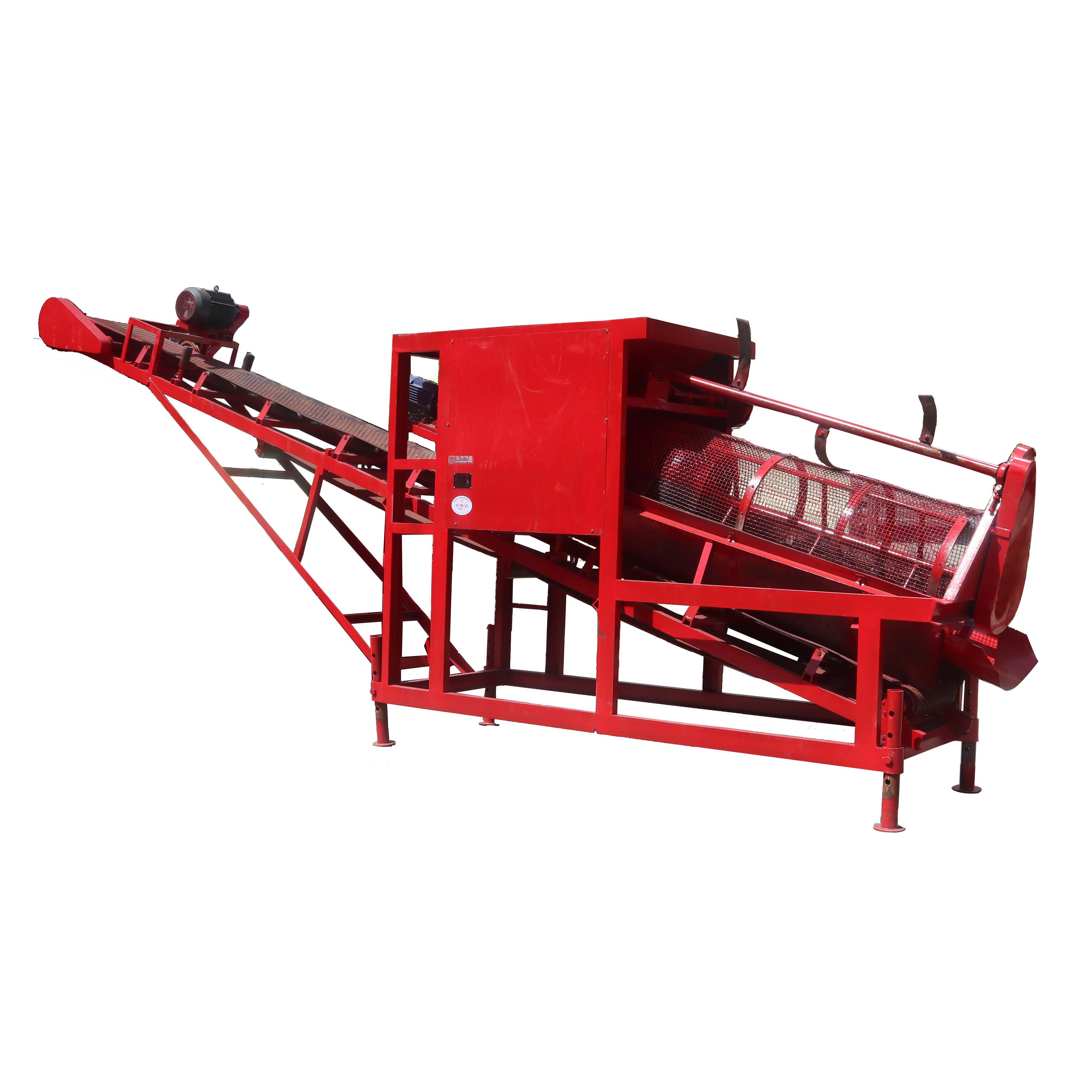

The drum sand screen machine is composed of hexagonal drum, frame, hopper, reducer and motor.Broken stone into the drum, on the one hand as the drum rotation and screening, on the other hand large stone along the drum slope flow forward, through the screen of different mesh is gradually screened out.
| model | roller diameter(mm) | drum length(mm) | roll body angle | drum rotation speed(r/min) | screen size | Maximum feed diameter(mm) | Capacity(m³/h) | Roller motor power(KW) | Conveyor belt power(KW) | Vibrator power | Dimension |
| SZJ20 | 600 | 1500 | 16˚ | 27.7 | 15*15 | 125 | 20 | 1.5 | 4 | 无 | 4132*1080*2700mm |
| SZJ30 | 600 | 1940 | 15˚ | 27.7 | 15*15 | 125 | 30 | 2.2 | 4 | 0.55kw | 7000*1080*2700mm |
| SZJ50 | 950 | 3300 | 20˚ | 33 | 15*15 | 150 | 50 | 3 | 7.5 | 0.5kw | 11287*1880*4115mm |
1.Reasonable design, compact structure, easy to move and maintain, only 10 minutes to replace the screen bottom.
2.Loader loading, do not need to transport, direct screening.
3.Sieve net rate is high, sieve does not stick sand, save resources.
4.High efficiency, more than 10 times the efficiency of manual screening.
5.Wide range of application, screening sand, coal, grain and other mixing materials.
6.Wet sand can be screened against the weather.
7.Both large and small projects can be applied.
