Product Introduction

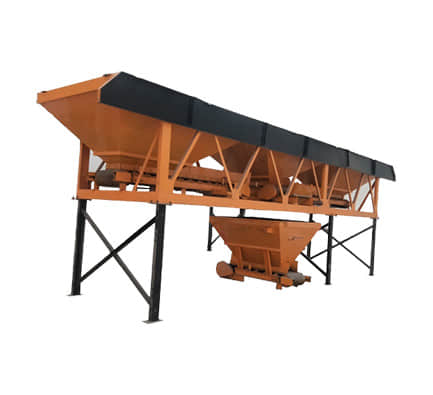

PLD series concrete batching machine, with its own electronic weighing system, can be used together with loaders or belt conveyors, cement silos and all kinds of mixers to form a fully automatic or semi-automatic mixing station, which effectively ensures the accuracy and stability of cement, sand, gravel and other materials.

PLD series concrete batching machine mainly include: PLD800, PL/1200, PL/1600, PL/2400, PL/3200, PL/4800 and so on.there are 2-5 kinds of batch bin.

Working principle

       工作前由装载机（配料机地下安装时可用人工上料）分别向各个储料斗供给砂、石物料。按配料控制仪说明书要求，向配料控制仪输入配方（不同的物料一定设为零）。按下配料按钮后，配料机便开始进入自动配料程序。其工作过程为：首先料Ⅰ皮带机开始工作，将料Ⅰ输送到称料斗，当称料斗内料Ⅰ的重量达到其设定值时，料Ⅰ皮带机自动停止：接着料Ⅱ皮带机自动开启，当称料斗内的物料重量达到料Ⅰ、料Ⅱ的设定值之和时，料Ⅱ皮带机停止，料Ⅲ皮带机开始工作……，如此四种物料配齐后，机器便处于等待出料状态。这时按下出料按钮，出料皮带机工作，将配好的混凝土干料卸入搅拌机料斗。出料完毕后，出料皮带机自动停止，并自动开始第二个循环配料，第二个循环配料结束，又等待出料，如此往复。

Features

1.Coarse and precise weighing with high precision

2.Using high performance weighing sensor, weighing accurate and stable；

3.The main parts apply the world-famous brands with high reliability.

4.The overall structure is reasonable with strong rigidity；

5.Stable transporting ensures the normal feeding；

6.It can weigh 4 kinds of aggregate at the same time, with short measuring time and high efficiency；

7.The head part of the belt machine is provided with a material shield to prevent material from spilling effectively；

8.The tail part is equipped with screw rod tension device, which can adjust the tensity of the belt conveniently and quickly;

9.Vibrators are installed in the side walls of the stock bin and the weighing hopper to facilitate quick unloading.
