JS系列混凝土搅拌机是目前国内外理想的建筑搅拌设备，具有衬板及叶片使用寿命长、维修保养方便等优点。适用于塑性、干硬性、轻骨料混凝土及各类灰浆、砂浆的搅拌。
Consult now
Scan the QR code on the left
Follow and add friends for consultation

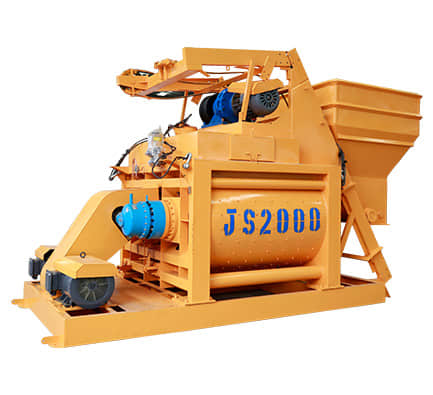

JS series concrete mixer is an ideal construction mixing equipment at home and abroad, with the advantages of long service life of lining board and blade, convenient maintenance and so on.They are suitable for mixing plasticity, very harsh and light aggregate concrete and all kinds of mortar.
The JS series concrete mixer drives the rotary drum through a driving mechanism. The rotary drum’s barrel is equipped with a gear ring arranged around the drum body, the drive shaft is set the gear engaged with the gear ring.
JS强制搅拌机主要由水平安置的两个相连水平安置的圆槽形拌筒，两根按相反方向转动的搅拌轴机和转动机构等组成，在两根轴上安装了几组搅拌叶片，其前后上下都错开一定的空间，从而使混合料上在两个搅拌筒内轮番得到搅拌，一方面将搅拌筒底部和中间的混合料向上翻转，另一方面又将混合料沿轴线分别向前后推压，从而使混合料得到快速而均匀的搅拌。因此，该类搅拌机具有自落式和强制式两种搅拌功能，搅拌效果好，耐磨性好，能耗低，宜制成大容量搅拌机。
The hopper increases speed（r/min）
| model | JS500 | JS750 | JS1000 | JS2000 | JS3000 | |
| discharge capacity（L） | 500 | 700 | 1000 | 2000 | 3000 | |
| feed capacity（L） | 800 | 1200 | 1600 | 3200 | 4800 | |
| max capacity（m³/h） | 25 | 35 | 50 | 100 | 100 | |
| Max aggregate size (pebble/gravel)mm | ≤40/50 | ≤40/60 | ≤60/80 | ≤60/100 | ≤60/100 | |
| mixing blade | rotary speed(r/min) | 35 | 31 | 25.5 | 24.3 | 24.3 |
| quantity | 2x7 | 2x7 | 2x8 | 2x9 | 2x10 | |
| mixing motor | model | Y180M-4 | Y200L-4 | Y225S-4 | Y2-225S-4 | Y2-250M-4 |
| power | 18.5 | 30 | 37 | 2x37 | 2x55 | |
| hoist motor | model | YEZ132S-4-B5 | YEZ132M-4-B5 | YEZ160S-4-B5 | ||
| power | 5.5 | 7.5 | 11 | |||
| water pump motor | model | 50DW20-80A | 65DWB-35-5 | KQW65-100I | ||
| power | 1.1 | 1.1 | 3 | |||
| 18 | 18 | 21.9 | ||||
| dimension | Transportation | 3050×2300×2680 | 3400×2300×2500 | 4200×4550×2500 | 2320×3168×2196 | 2600×4020×1695 |
| working condition | 4461×3050×5225 | 3400×2300×5140 | 4200×4500×7600 | |||
| weight | 4000 | 5500 | 8700 | |||
| discharge height | 1500 | 2000/3500 | 3500/3800 | |||
1. High efficiency: the material can be violently and fully mixed in a short time, and the mixing time only needs 20 seconds to reach the uniform state, Its actual efficiency is more than 20% higher than ordinary mixer;
2. Energy saving: It has low impact load and low energy consumption; Compared with the traditional mixing machine, the maximum energy saving is more than 15% through the strict comparison test.
3. Durability: the blade is made of high chromium alloy cast iron, which reduces the friction and impact of sandstone on the blade, and its service life can exceed 60,000 cans.
