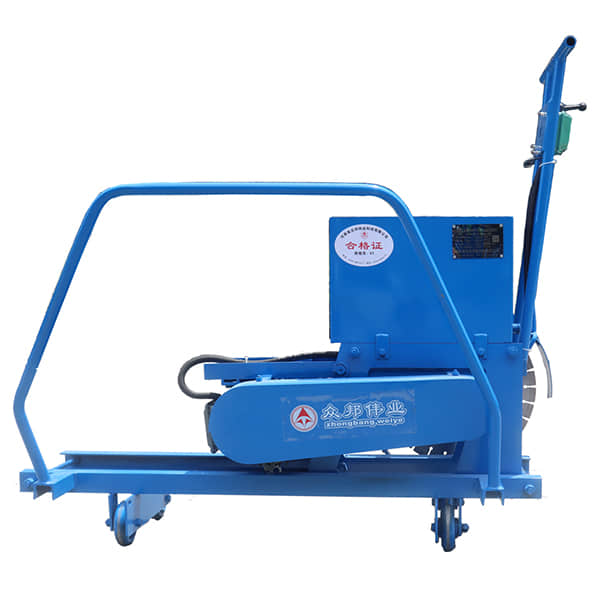

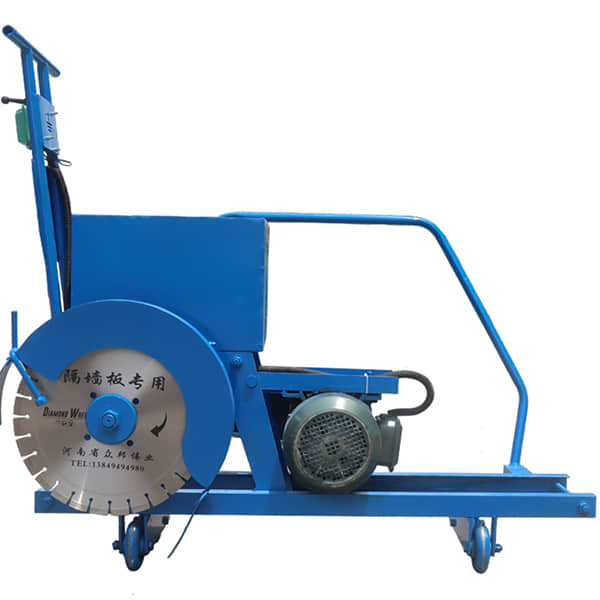

ZQS500 cutting machine is mainly used for cutting all kinds of light partition panels and prefabricated components.
Consult now
Scan the QR code on the left
Follow and add friends for consultation
ZQS cutting machine is mainly used for cutting all kinds of light partition panels and prefabricated components. It has transverse feeding and longitudinal running mechanism smooth cutting man-made diamond blade is installed in the cutter easy to operate long service life and low cutting cost.
The cutting surface precision of the equipment is high;The strip can be cut off along the cross section and the strip width can be cut into any size along the longitudinal section. The cutting cost is low and the efficiency is high which greatly meets the construction requirements.The equipment is simple in structure easy to operate stable and reliable in performance high in cutting precision it is the ideal equipment for cutting concrete products and hard and brittle materials and it is the necessary equipment for partition plate production line.
| model | cutting thickness（mm） | cutting width（mm） | diameter of knife（mm） | rpm（r/min） | knife edge perpendicularity | kerf width（mm） | feed speed（m/min） | matched power（KW） | Weight（KG） | Dimension（L*W*Hmm） |
| ZQS400 | ≤120 | 0-600 | φ400 | 2000 | ≤1:100 | ≤5 | ≤1.5 | 4 | 122 | 1250*500*1150 |
| ZQS500 | ≤180 | 0-600 | φ500 | 2000 | ≤1:100 | ≤5 | ≤1.5 | 5.5 | 160 | 1550*550*1260 |
| ZQS600 | ≤200 | 0-600 | φ600 | 2000 | ≤1:100 | ≤5 | ≤1.5 | 5.5 | 174 | 1550*650*1300 |
| ZQS700 | ≤260 | 0-600 | φ700 | 2000 | ≤1:100 | ≤5 | ≤1.5 | 7.5 | 286 | 1580*750*1300 |
| ZQS800 | ≤330 | 0-600 | φ800 | 2060 | ≤1:100 | ≤5 | ≤1.5 | 11 | 286 | 1580*750*1300 |
Easy to operate long service life low cutting cost
