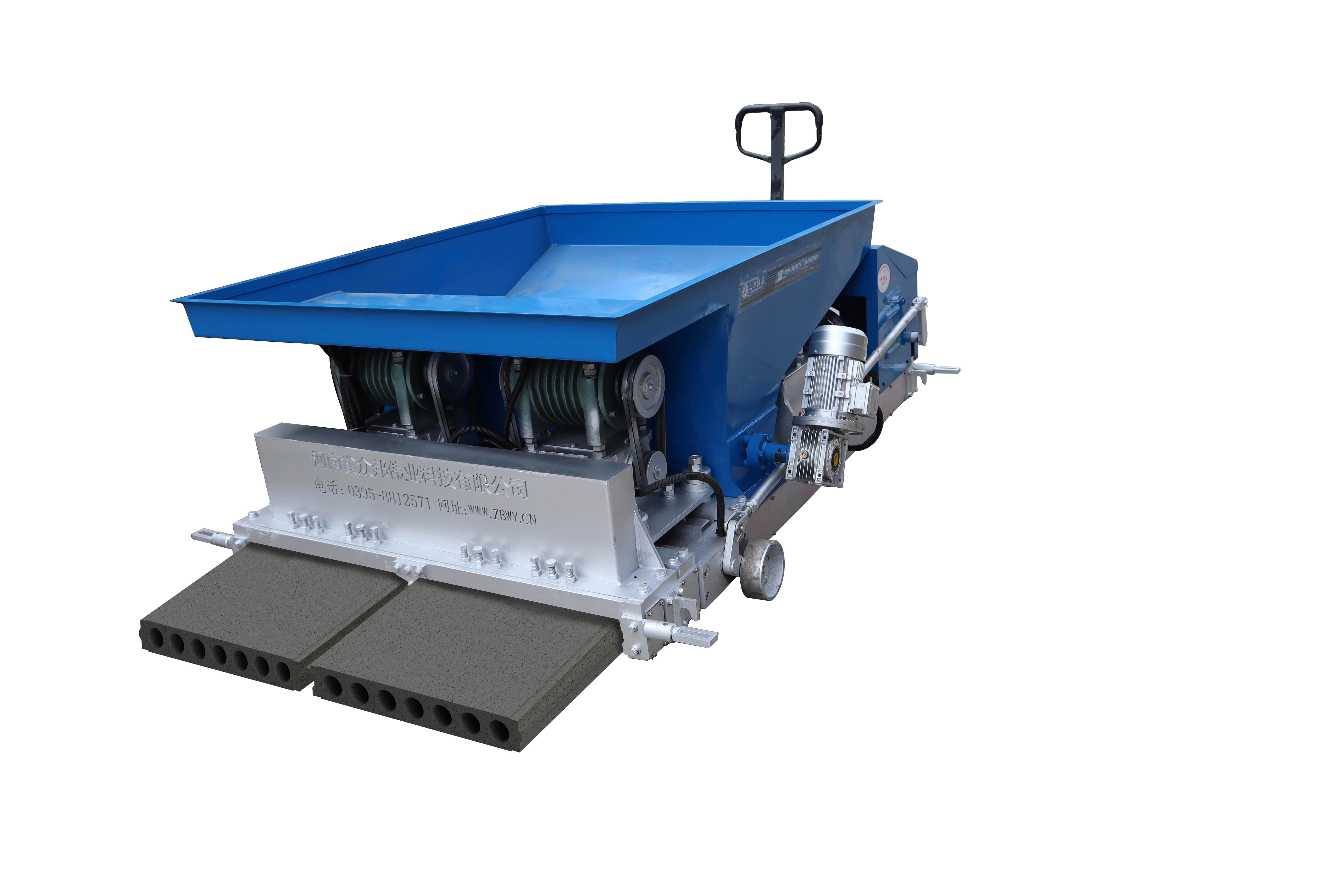

JQT double light partition wall panel extrusion machine can produce two pcs of 600mm light partition wall panel at the same time
Consult now
Scan the QR code on the left
Follow and add friends for consultation

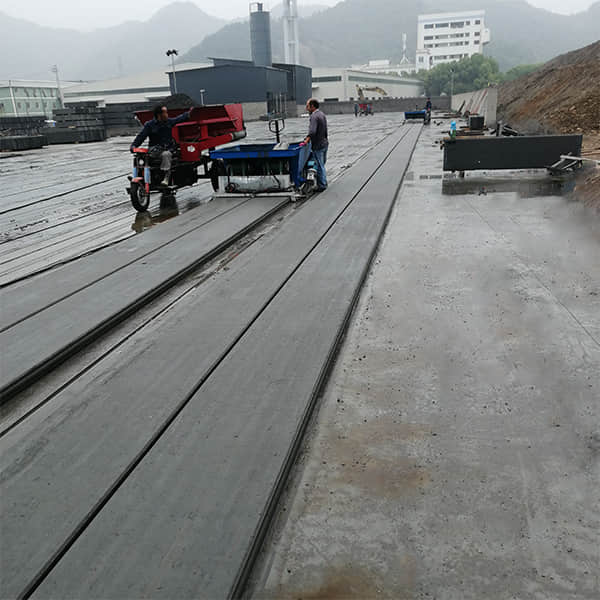

JQT double light partition wall panel extrusion machine can produce two pcs of 600mm light partition wall panel at the same time which improves the production efficiency and place utilization rate greatly .it has great practical value and vast developing space.
The machine gathers distributing material vibrating forming and demolding processes of the lightweight partition wall panel into one. The main motor transfers power to the reducer through the belt pulley.The output shaft of the reduction gearbox drives the helical churning knife to rotate in the forming cavity which consists of machine frame (wall board) vibration machine (vibrator) and pedestal.the lightweight mixtures is transported continuously from hoppers to forming cavities.It is subjected to the dual action of the helical churning knife (augers)extrusion and the vibrator continuous vibration in the forming cavity.with producing resonance the wall panel can achieve the requirements of shape size and density through be squeezed and compacted continuously.At the same time compacted wall panel produces the reaction force to the rotating churning knife and pushes the extruder forward continuously thus realizing the continuous production of wall panel. The upper surface of wall panel is polished by the forming scraper at the end of the machine.
| No | model | Plate specification | number pf hole(个) | Dia ofhole(mm) | hollow ratio(%) | matched power | dimension | Weight(kg) | |||
| height (mm) | width(mm) | productivity(m/min) | Main motor(kW) | Vibrator(kW) | L×W×H(mm) | ||||||
| 1 | JQT9*29.5double panel | 90 | 295 | 6 | φ58 | 29.3 | 0.8-2.5 | 5.5 | 0.8 | 2700×975×725 | 1050 |
| 2 | JQT9*(20+30) | 90 | 200+300 | 5 | φ58 | 29.35 | 0.8-2.5 | 5.5 | 4 | 2460×870×980 | 1100 |
| 3 | JQT9*50double panel | 90 | 500 | 12 | 10-φ58 2-φ30 | 32.93 | 0.8-2.5 | 5.5*2 | 4*2 | 2700×1400×725 | 1600 |
| 4 | JQT9*60double panel | 90 | 600 | 14 | φ58 | 34 | 0.8-2.5 | 5.5*2 | 4*2 | 2700×1500×725 | 1800 |
| 5 | JQT10*29double panel | 100 | 290 | 6 | φ40 | 29.85 | 0.8-2.5 | 5.5 | 0.8 | 2700×975×725 | 1050 |
1、it improve the production efficiency .
2. The density of the plate is uniform, and it changes completely the low strength of the plate at the edge of the left rotation and the right hand mixing blade, which is easy to be cracked after assembling.
3.High mechanization, full hydraulic lifting.
it can save a lot of raw materials: the broken end wire can be manually connected; The plate can be produced to reach the end of the bar, so that the steel bar and mixing materials can be used at the end of the pedestal, thus improving the utilization ratio of the pedestal.
4、 it doesn’t use the channel steel track, which saves the cost of the pedestal and reduces the production difficulty, ensure the accuracy of production.
5、 The main vulnerable parts have long lifetime:mixing blade can be used more than 80,000 meters,The vibration plate can reach more than 100,000 meters, and the side wall panel can reach more than 60,000 meters.
