The thickness of panel is increased to 150-240 mm. it will not appear the plate penetration with opening hole or slotting when the pipeline is laid on the wall. At the same time the orthogonal double row holes structure of the cross section is arrange
Consult now
Scan the QR code on the left
Follow and add friends for consultation
JQT双层孔轻质隔墙板挤压机采用新创的、随机张拉埋设上、下保护层钢筋或预拉上下保护层钢筋的工艺，普硅水泥或硅酸盐水泥作胶凝剂，低碳钢丝作增强材料，膨胀珍珠岩、陶粒、炉渣、粉煤灰、水渣、河沙等作集料，将传统手工拉模、地模或立模制板工艺所需的多道工序集于一体，通过该机一次成型。工艺独特、技术先进，大大地降低了制品成本，提高了制品质量和生产效率，是生产轻质隔墙板的核心设备。

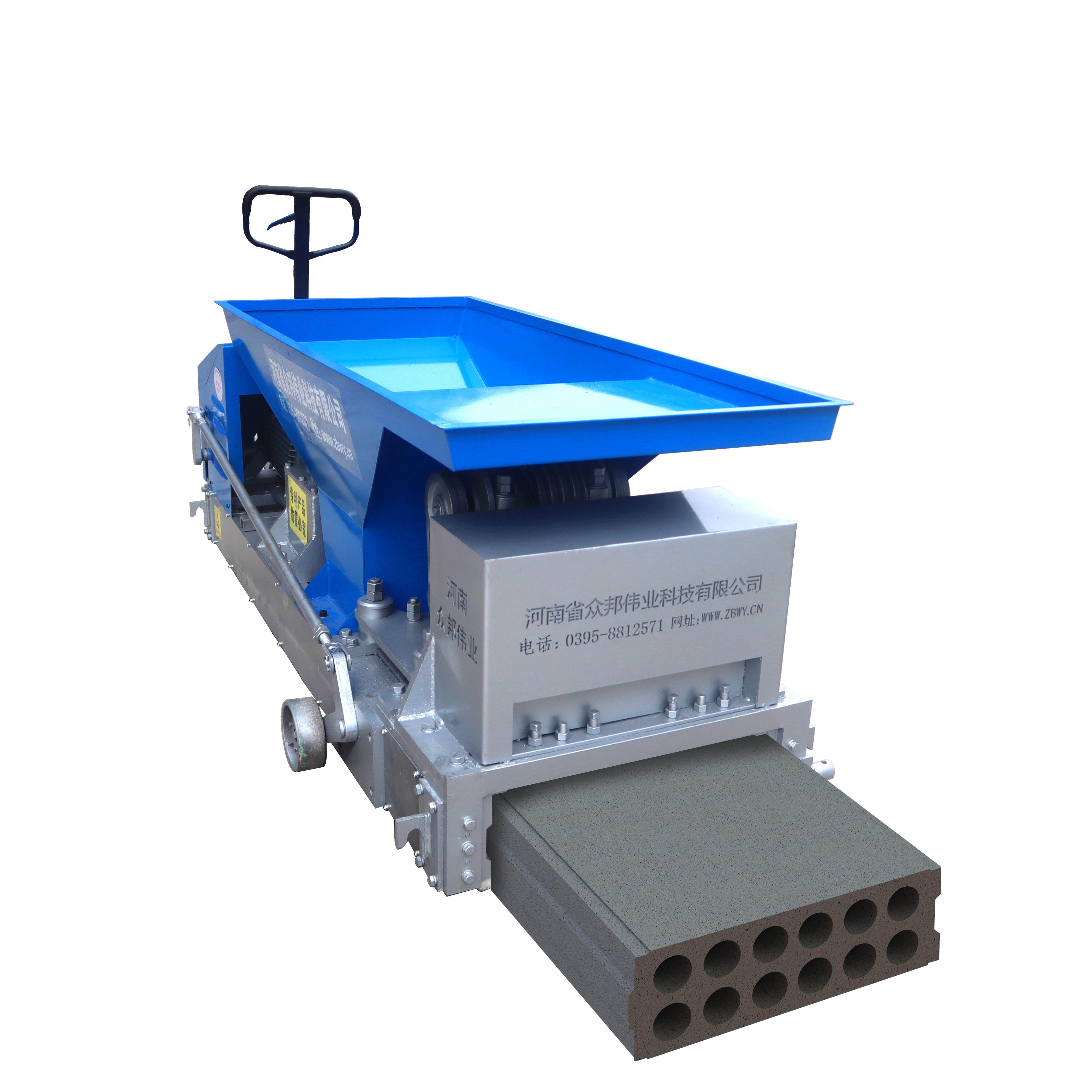

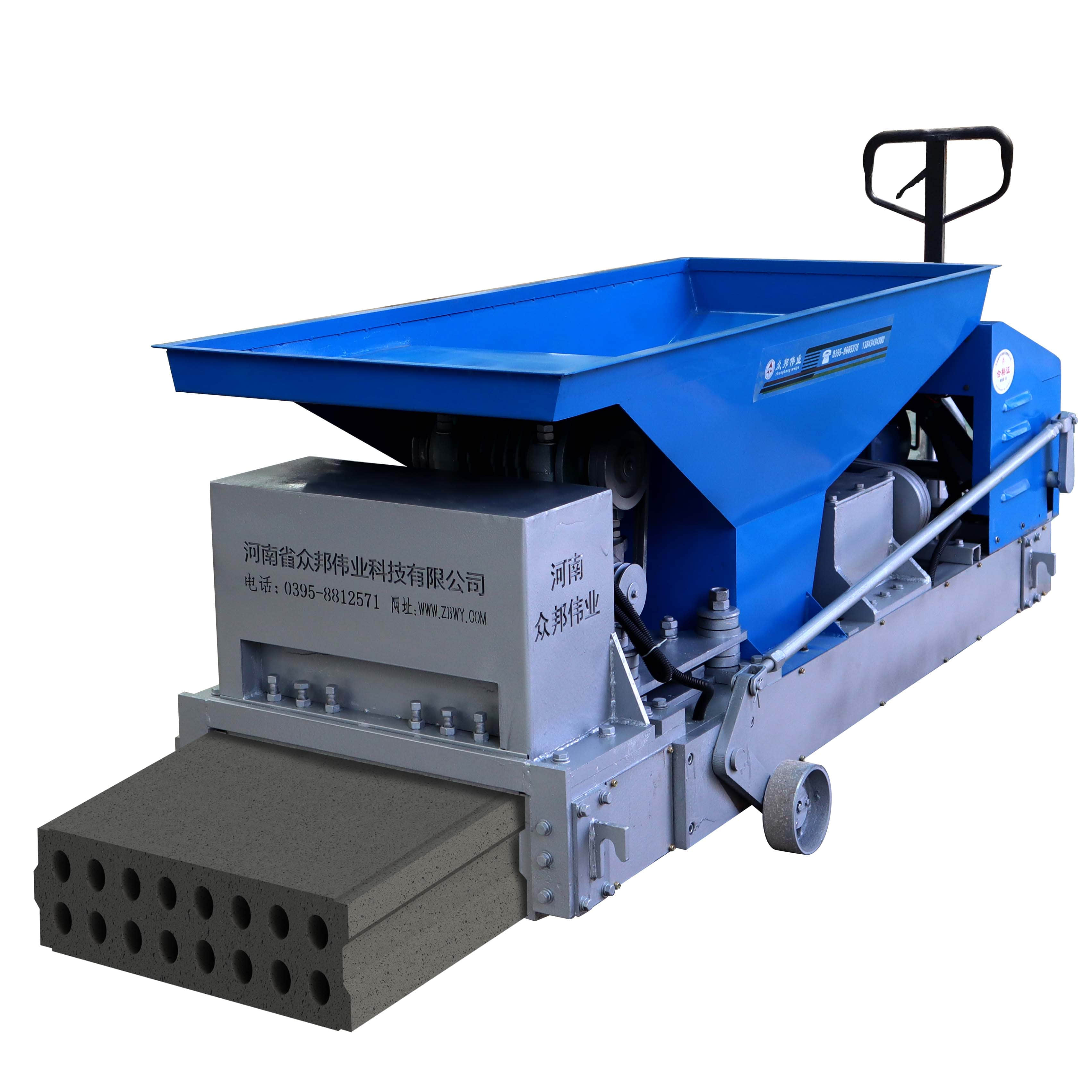

JQT double-layer lightweight wall panel extruder adopts the technology original of random tension rebar and pretensioning upper protective layer.it uses ordinary cement or port-land cement as gelling agent,the low carbon steel wire as reinforce.expand perlite,ceramsite,slag,fly ash,grain slag,sand as aggregate.The traditional manual drawing, ground moulding or stripping form plate process is integrated into a whole process that can be finished by the machine at one time. The advanced technology has greatly reduced the product cost, improved the product quality and production efficiency, and is the core equipment for the production of lightweight partition board.

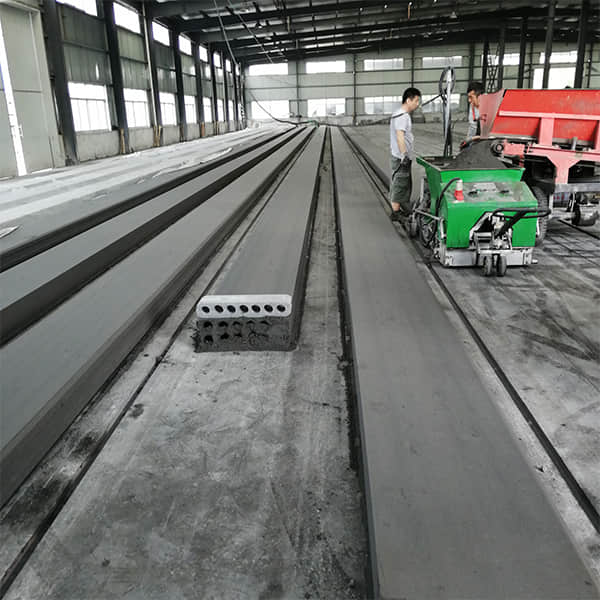

The machine gathers distributing material, vibrating, forming, and demolding processes of the lightweight partition wall panel into one. The main motor transfers power to the reducer through the belt pulley.The output shaft of the reduction gearbox drives the helical churning knife to rotate in the forming cavity which consists of machine frame (wall board), vibration machine (vibrator) and pedestal.the lightweight mixtures is transported continuously from hoppers to forming cavities.It is subjected to the dual action of the helical churning knife (augers)extrusion and the vibrator continuous vibration in the forming cavity.with producing resonance, the wall panel can achieve the requirements of shape, size and density through be squeezed and compacted continuously.At the same time, compacted wall panel produces the reaction force to the rotating churning knife, and pushes the extruder forward continuously, thus realizing the continuous production of wall panel. The upper surface of wall panel is polished by the forming scraper at the end of the machine.
| Model/size | Plate specification | Produce speed（m/min） | Matching power kw | Life of auger （km） | dimension（L*W*Hmm) | Weight （kg） | |||||
height mm | widthmm | Number of hole（pcs） | Dia of hole（mm） | Porosity rate（%） | Main motor | vibrator | |||||
| JQTdouble-layer150 | 150 | 600 | 16 | φ40 | 22.5 | 0.8-2.5 | 11 | 1.1 | ＞80 | 2700*1000*860 | 1300 |
| JQTdouble-layer200 | 200 | 600 | 12 | φ68 | 36.6 | 0.8-2.5 | 15 | 4 | ＞80 | 2820*975*800 | 1570 |
| JQTdouble-layer230 | 230 | 600 | 10 | φ88 | 44 | 0.8-2.5 | 15 | 1.1 | ＞80 | 2600*900*880 | 1692 |
| JQT200×40double-layer | 200 | 400 | 8 | φ64 | 32.6 | 0.8-2.5 | 7.5 | 1.1 | ＞80 | 2700*450*800 | 900 |
1. The thickness of panel is increased to 150-240 mm. it will not appear the plate penetration with opening hole or slotting when the pipeline is laid on the wall. At the same time the orthogonal double row holes structure of the cross section is arranged orderly to ensure a good sound insulation and heat preservation effect.
2.The Thickened double-row holes light-weight partition board is used for 200mm shear wall or more than 200mmlintel cross-connecting. The connection part is flat ensuring the overall effect of the interior decoration.
3.It reduces the production cost greatly and simplifies the production and installation process.
