JQT异形轻质隔墙板挤压机，主要机型有90型、100型、120型、150型和200型，分为单L、单T、双L、双T和T+L型等10多种型号。
Consult now
Scan the QR code on the left
Follow and add friends for consultation

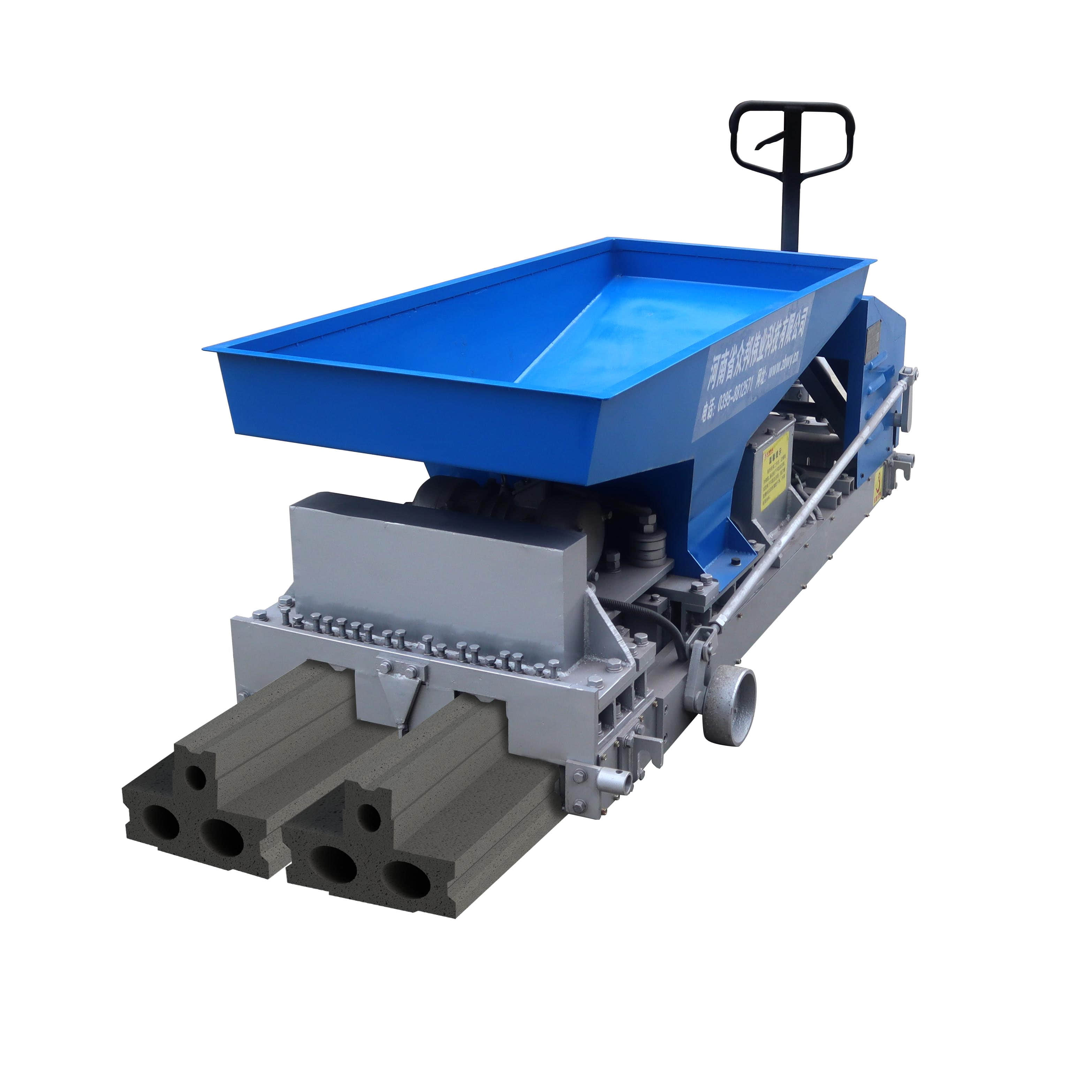

The JQT double T lightweight wall panel extrusion machine solves the installation difficulty of “internal and external corners’’ of the wall‘s corner in the construction process. It achieves the panel installation standards of fast installation time-saving flat.The connection between plates is more stable. The integrity and stability of the wall are enhanced. Its heat preservation sound insulation and other indicators are better than national and industry standards.
JQT double T lightweight wall panel extrusion machine realizes the firm connection and seamless connection of corner wall and main wall. It can be a community between the wallboard and joint panels and building beams to solve the problem of wall cracks in the building's corner.
The machine gathers distributing material, vibrating, forming, and demolding processes of the lightweight partition wall panel into one. The main motor transfers power to the reducer through the belt pulley.The output shaft of the reduction gearbox drives the helical churning knife to rotate in the forming cavity which consists of machine frame (wall board), vibration machine (vibrator) and pedestal.the lightweight mixtures is transported continuously from hoppers to forming cavities.It is subjected to the dual action of the helical churning knife (augers)extrusion and the vibrator continuous vibration in the forming cavity.with producing resonance, the wall panel can achieve the requirements of shape, size and density through be squeezed and compacted continuously.At the same time, compacted wall panel produces the reaction force to the rotating churning knife, and pushes the extruder forward continuously, thus realizing the continuous production of wall panel. The upper surface of wall panel is polished by the forming scraper at the end of the machine.
| Model/Size | Panel Specification | productivity （m/min） | power | auger life （km） | dimension （L*W*Hmm） | Weight （kg） | |||||
| thickness | width | number of hole | dia of hole | hollow ratio | main motor | vibrator | |||||
| JQT9*29 double T | 90/185 | 2x290 | 8 | 2-φ46 6-φ58 | 22.5 | ＞0.8-2.5 | 5.5 | 0.8 | ＞80 | 2700×924×725 | 1000 |
| JQT9*19*19 double T | 90/190 | 2x290 | 6 | 2-φ46 4-φ52 | 25 | ＞0.8-2.5 | 5.5 | 0.8 | ＞80 | 2700×665×800 | 850 |
| JQT9.5*20*19.5 double T | 90/200 | 195 | 6 | 2-φ48 4-φ52 | 25 | ＞0.8-2.5 | 5.5 | 0.8 | ＞80 | 2700×685×800 | 850 |
| JQT10*29 double T | 100 | 290 | 84 | 2-φ46 6-φ58 | 27.3 | ＞0.8-2.5 | 5.5 | 0.8 | ＞80 | 2700×924×725 | 1000 |
| JQT90T+L | 90 | 2x290 | 2x4 | 2-φ46 6-φ58 | 27.7 | ＞0.8-2.5 | 5.5 | 0.8 | ＞80 | 2500*880*830 | 1064 |
| JQT12*29.5 double T | 120 | 2x295 | 8 | 2-φ52 6-φ65 | 24.8 | ＞0.8-2.5 | 7.5 | 1.1 | ＞80 | 2510×950×840 | 1100 |
| JQT15*29 double T | 150 | 2x290 | 20 | φ40 | 24 | ＞0.8-2.5 | 7.5 | 1.1 | ＞80 | 2500*880*830 | 1538 |
| JQT20*29 double T | 200 | 290 | 16 | 2-φ46 6-φ58 | 31 | ＞0.8-2.5 | 11 | 1.1 | ＞80 | 2510×950×840 | 1600 |
| JQT100T+L | 100 | 2x290 | 2x4 | 4-φ58 12-φ64 | 28.2 | ＞0.8-2.5 | 5.5 | 0.8 | ＞80 | 2820×975×800 | 1065 |
1.High mechanization, full hydraulic lifting.it can save a lot of raw materials: the broken end wire can be manually connected; The plate can be produced to reach the end of the bar, so that the steel bar and mixing materials can be used at the end of the pedestal, thus improving the utilization ratio of the pedestal.
2.High mechanization, full hydraulic lifting.it can save a lot of raw materials: the broken end wire can be manually connected; The plate can be produced to reach the end of the bar, so that the steel bar and mixing materials can be used at the end of the pedestal, thus improving the utilization ratio of the pedestal.
3. The main vulnerable parts have long lifetime:mixing blade can be used more than 80,000 meters,The vibration plate can reach more than 100,000 meters, and the side wall panel can reach more than 60,000 meters.
